Our Gas Connector Specs (USA and Abroad)
In God We Trust

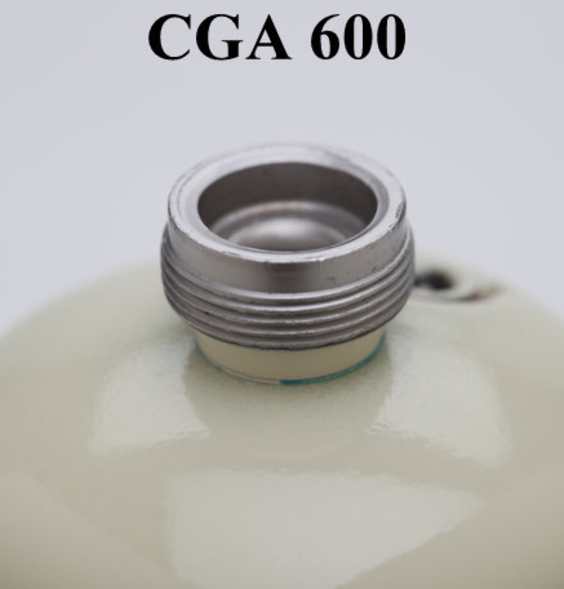

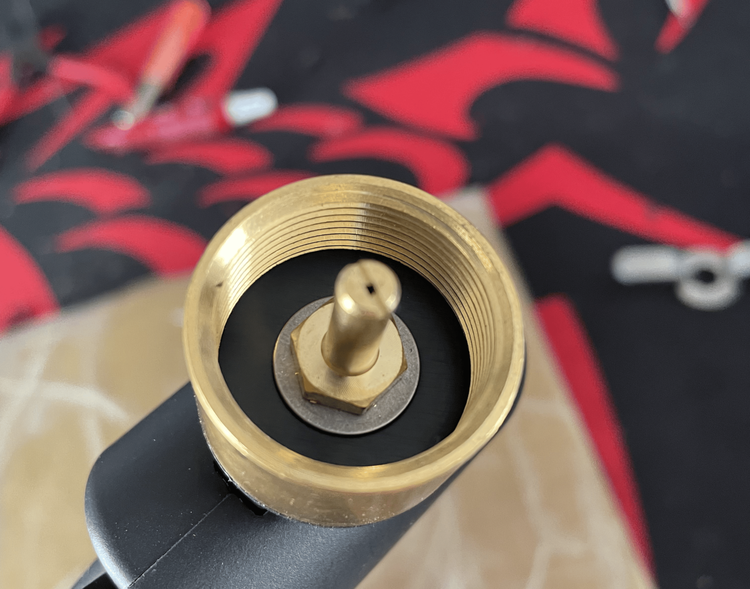

Our Torches are made to USA standard in gas fittings, using a female CGA600 connector fitting (with a thread of 1-inch 20 UNEF) at the base of our torches, requiring a male, CGA600 connection from the fuel source:
This is the US standard gas connector for any disposable propane tanks around 1lb, such as fuel tanks sold by Coleman, Bernzomatic, or Harris.
Our hoses incorporate a CGA600 Female gas fitting (torch end) to POL (Prest-O-Lite) male gas fitting (20 lb tank connector).

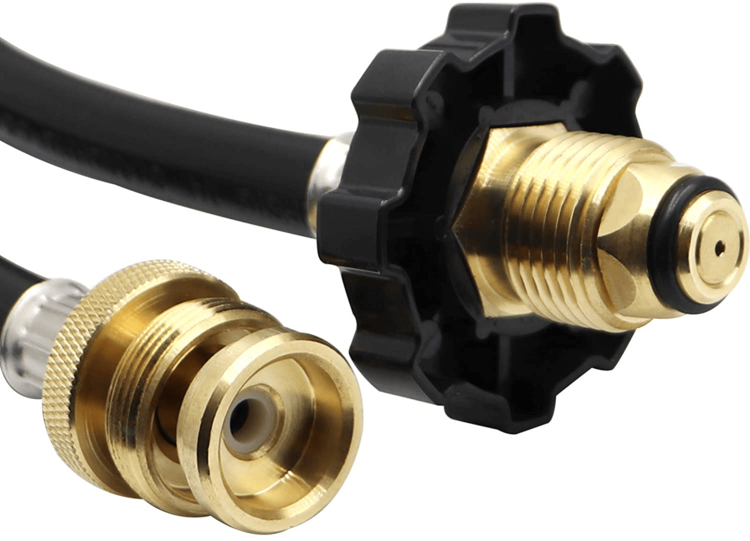

CGA600 Female fitting (Left) to POL (Prest-O-Lite) Male fitting (Right)
Larger tanks within the USA have a POL Female fitting (CGA 510, 0.885" LH), which is paired to by our hoses with a POL Male fitting (see above).
(NOTE! POL connectors are left-hand threaded! This means they are opposite of the normal screwed fitting conventions. To tighten your connector, twist counter-clockwise. To loosen your hose, turn clockwise.)
In international use, common propane connectors often are not the same as those used in the USA. The following is a quick reference list of common connector types per country and what adapter is required to use your local fuel options.
NOTE: Our torches are designed to operate under 135psi of fuel pressure, or 9.3 BAR (9307mBAR). When finding fuel options, make sure that your tank of choice provides adequate fuel pressure for an optimum Grillblazer Experience!
While our products were designed to burn straight gaseous propane, butane/propane mixtures are also a useable fuel source. Do not use straight butane, alcohol, or white gas fuel options for Grillblazer Products.
Canada
The most common 20lb tank fitting in Canada is the QCC1/Type 1. To use our hoses, you will need a QCC1 Male/POL Female adapter.The most common 1lb tank fitting in Canada is the CGA600. This is fully compatible with our torches. No adapter needed!
If you wish to use an off-brand hose, look for a hose with a QCC1 male connector, to a CGA600 female connector.
United Kingdom (UK)
The most common 20lb tank fitting in the UK is female POL. This is fully compatible with our hoses. No adapter needed!The most common 1lb tank fitting in the UK is the CGA600. This is fully compatible with our torches. No adapter needed!
QCC1 is gaining popularity within the UK as well, and while this isn't compatible with our hoses, hoses with male QCC1 to female CGA600 are very common and work great with our products. Male QCC1/Female POL adapters will also allow you to us QCC1 tanks with our hoses.
Australia
The most common 20lb tank fitting in Australia is female POL. This is fully compatible with our hoses. No adapter needed!Alternatively, newer 20lb tanks may also use a QCC1 connector. This would require a male QCC1/female POL adapter to use our hoses.The most common 1lb tank fitting in Australia is the CGA600. This is fully compatible with our torches. No adapter needed!
Germany
The most common 20lb tank fitting in Germany is the European standard DIN 477 G.5, also known as a W21.8 x 1/14" LH connection. To use our hoses, you will need a Male DIN 477 G.5 (W21.8 x 1/14" LH)/Female POL (CGA 510, 0.885" LH) adapter.The most common 1lb tank fitting in Germany is the EN 417 Lindal. To connect to our torches, you will need a Male EN 417 Lindal/Female CGA600 adapter.
If you wish to use an off-brand hose, look for a hose with a DIN 477 G.5 male connector, to a CGA600 female connector.
Sweden
The most common 20lb tank fitting in Sweden is female POL. This is fully compatible with our hoses. No adapter needed!Alternatively, newer 20lb tanks may also use a QCC1 connector. This would require a male QCC1/female POL adapter to use our hoses.The most common 1lb tank fitting in Sweden is the CGA600. This is fully compatible with our torches. No adapter needed!
Some spillover of DIN 477 tanks from the European supply does occur in Sweden, though the most common is POL. If you are using DIN 477 tanks, a male DIN 477/female POL adapter would be necessary to use our hoses.
Mexico
The most common 20lb tank fitting in Mexico is the QCC1/Type 1. To use our hoses, you will need a QCC1 Male/POL Female adapter.The most common 1lb tank fitting in Mexico is the CGA600. This is fully compatible with our torches. No adapter needed!
If you wish to use an off-brand hose, look for a hose with a QCC1 male connector, to a CGA600 female connector.
Netherlands
The most common 20lb tank fitting in the Netherlands is female POL. This is fully compatible with our hoses. No adapter needed!Alternatively, newer 20lb tanks may also use a QCC1 connector. This would require a male QCC1/female POL adapter to use our hoses.The most common 1lb tank fitting in the Netherlands is the CGA600. This is fully compatible with our torches. No adapter needed!
Some spillover of DIN 477 tanks from the European supply does occur in the Netherlands, though the most common is POL. If you are using DIN 477 tanks, a male DIN 477/female POL adapter would be necessary to use our hoses.
France
In France, look for 20lb tanks with female POL fittings. These will be compatible with our hoses.Alternatively, using a tank with a QCC1, or a French-specific connector like a G.2 (CLG) or a G.54 connector, you will need a respective adapter in its male variant that feeds to a Female POL adapter to use our hoses.Look for Coleman or other 1lb tanks with CGA600 female connectors. These will be directly compatible with our torches.Alternatively, Campingaz tanks with proprietary "Easy Clic" connectors will require a common Easy Clic male/ CGA600 female adapter.
Due to the availability of POL valve fittings for 20lb tanks in France, our standard hose or others like it with female CGA600 to male POL are commonly used. Alternatively, when using French specific tanks with connections like a G.2 (CLG) or a G.54, find your respective hose that terminates in a female CGA600 connector.
(Warning; Campigaz provides multiple fuel options. Propane & Propane/Butane mixes are the only usable fuels to our products. Other fuels such as alcohol, straight butane, or white gas will not work with Grillblazer products)
Ireland
The most common 20lb tank fitting in Ireland is female POL. This is fully compatible with our hoses. No adapter needed!Alternatively, newer 20lb tanks may also use a QCC1 connector. This would require a male QCC1/female POL adapter to use our hoses.The most common 1lb tank fitting in Ireland is the CGA600. This is fully compatible with our torches. No adapter needed!
Norway
The most common 20lb tank fitting in Norway is the QCC1/Type 1. To use our hoses, you will need a QCC1 Male/POL Female adapter. Alternatively, find available tanks with POL connectors to use our provided hoses!
The most common 1lb tank fitting in Norway is the CGA600. This is fully compatible with our torches. No adapter needed!
Thailand
The most common 20lb tank fitting in Thailand is the QCC1/Type 1. To use our hoses, you will need a QCC1 Male/POL Female adapter.Alternatively, find available tanks with POL connectors to use our provided hoses!
The most common 1lb tank fitting in Thailand is the CGA600. This is fully compatible with our torches. No adapter needed!
If you wish to use an off-brand hose, look for a hose with a QCC1 male connector, to a CGA600 female connector.
Look for imported fuel options, like Coleman, from the USA for easy compatibility. Importing trends suggest common availability of US and European standard fittings for most propane products.
Russia
The most common 20lb tank fitting in Russia is female POL. This is fully compatible with our hoses. No adapter needed!Alternatively, newer 20lb tanks may also use a QCC1 connector. This would require a male QCC1/female POL adapter to use our hoses.The most common 1lb tank fitting in Russia is the CGA600. This is fully compatible with our torches. No adapter needed!
New Zealand
The most common 20lb tank fitting in New Zealand is female POL. This is fully compatible with our hoses. No adapter needed!Alternatively, newer 20lb tanks may also use a QCC1 connector. This would require a male QCC1/female POL adapter to use our hoses.The most common 1lb tank fitting in New Zealand is the CGA600. This is fully compatible with our torches. No adapter needed!
Vatican City
The most common 20lb tank fitting available to the Vatican is the European standard DIN 477, also known as a W21.8 x 1/14" LH (Left-hand thread) connection. To use our hoses, you will need a Male DIN 477 G.5 (W21.8 x 1/14" LH)/Female POL (CGA 510, 0.885" LH) adapter.The most common 1lb tank fitting available to the Vatican is the CGA600. This is fully compatible with our torches. No adapter needed!
Italy
The most common 20lb tank fitting in Italy is the European standard DIN 477, also known as a W21.8 x 1/14" LH (Left-hand thread) connection. To use our hoses, you will need a Male DIN 477 G.5 (W21.8 x 1/14" LH)/Female POL (CGA 510, 0.885" LH) adapter.The most common 1lb tank fitting in Italy is the CGA600. This is fully compatible with our torches. No adapter needed!
Switzerland
The most common 20lb tank fitting in Thailand is the QCC1/Type 1. To use our hoses, you will need a QCC1 Male/POL Female adapter.Alternatively, find available tanks with POL connectors to use our provided hoses!
The most common 1lb tank fitting in Thailand is the CGA600. This is fully compatible with our torches. No adapter needed!
Switzerland incorporates European standards within their propane connectors with the DIN 477, nevertheless their position as a international travel destination means older systems like POL or global standards like QCC1s are common and accessible within the country.
Denmark
The most common 20lb tank fitting in Denmark is female POL. This is fully compatible with our hoses. No adapter needed!Alternatively, newer 20lb tanks may also use a QCC1 connector. This would require a male QCC1/female POL adapter to use our hoses.The most common 1lb tank fitting in Denmark is the CGA600. This is fully compatible with our torches. No adapter needed!
Some spillover of DIN 477 tanks from the European supply does occur in Denmark, though the most common is POL. If you are using DIN 477 tanks, a male DIN 477/female POL adapter would be necessary to use our hoses.
South Africa
The most common 20lb tank fitting in South Africa is female POL. This is fully compatible with our hoses. No adapter needed!The most common 1lb tank fitting in South Africa is the CGA600. This is fully compatible with our torches. No adapter needed!
Singapore
The most common 20lb tank fitting in Singapore is the QCC1/Type 1. To use our hoses, you will need a QCC1 Male/POL Female adapter.The most common 1lb tank fitting in Singapore is the CGA600. This is fully compatible with our torches. No adapter needed!
If you wish to use an off-brand hose, look for a hose with a QCC1 male connector, to a CGA600 female connector.
Austria
Austria is moving towards using a Euro Connector, but adoption varies. Look for a DIN 477 or G.2/G.12 tank, and use a respective adapter to female POL to use our hoses.
The most common 1lb tank fitting in Austria is the CGA600. This is fully compatible with our torches. No adapter needed!
United Arab Emirates (UAE)
The most common 20lb tank fitting in the UAE is the QCC1/Type 1. To use our hoses, you will need a QCC1 Male/POL Female adapter. Alternatively, find available tanks with POL connectors to use our provided hoses!The most common 1lb tank fitting in the UAE is the CGA600. This is fully compatible with our torches. No adapter needed!
If you wish to use an off-brand hose, look for a hose with a QCC1 male connector, to a CGA600 female connector.
Look for imported fuel options, like Coleman, from the USA for easy compatibility. Importing trends suggest common availability of US and European standard fittings for most propane products.
If your country is not in the list above, feel free to reach out to one of our customer service representatives before making a purchase. We're happy to help you make sure that you find what you need to have a great Grillblazer experience!
Thank you to Flagpedia! Check them out at https://flagpedia.net
